Multi Circuit Power Monitoring System

Starline Series

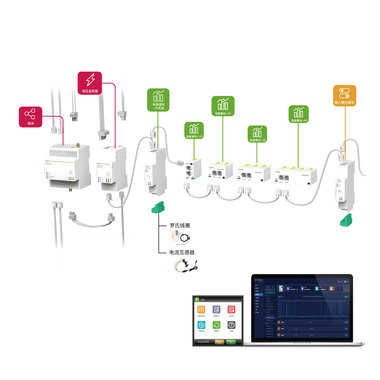

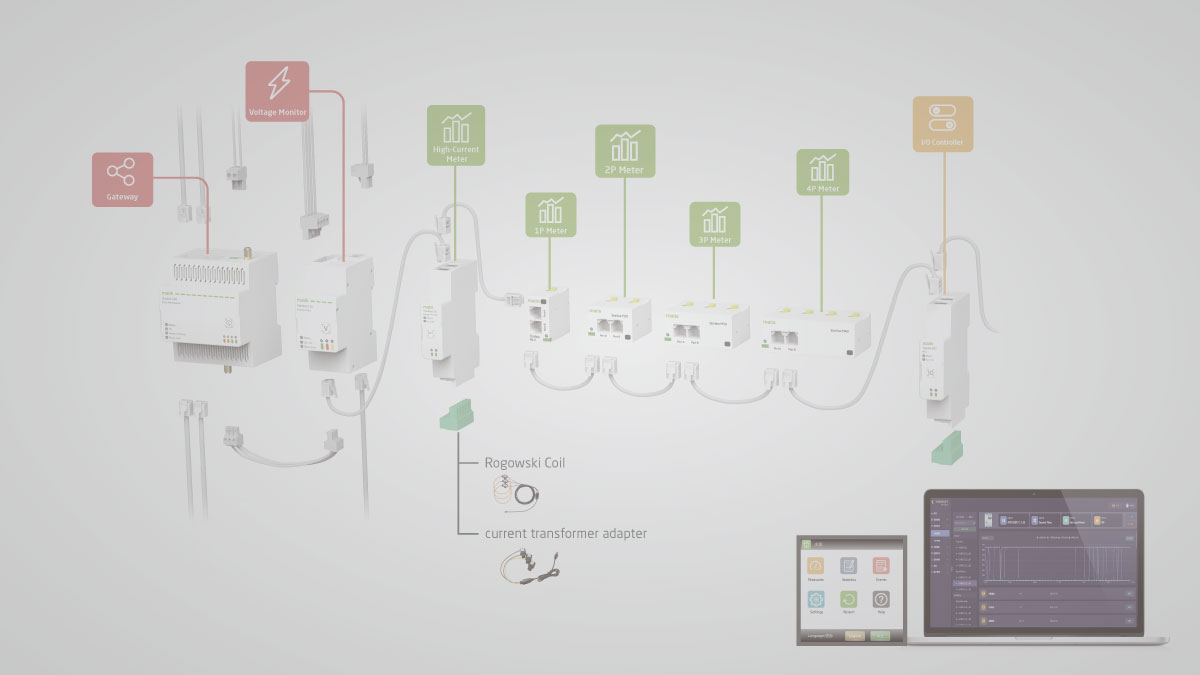

The intergrated system includes:
1. Data Acquisition & Remote Access
①Starline_G30: Gateway ②Software
2. Voltage Module & Local Display
①Starline_V10 ②Starline_D10 ③Starline_Vision: Config. Software
3. Current Meter
①Starline_M: 1-4P 63A
②Starline_E: 3P up to 6000A
4. CT
①CTF_Φ12~30cm ②CTO_200~600A ③CTA_5A/2.5mA
5. Digital&Analog Input/Output Module
①DIO-4/2 ②AIO_2/2

Video

Specification Product pictures Data download

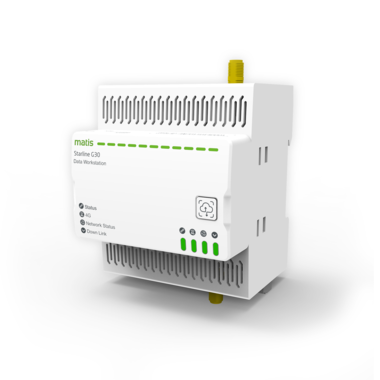

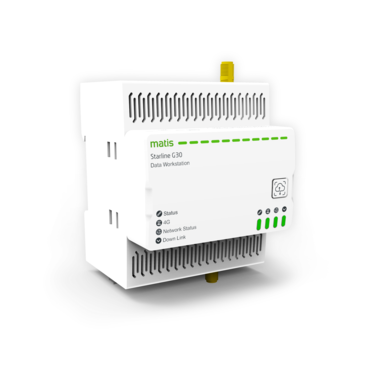

**Starline_G Smart Gateway**
		Starline_D10	Starline_G10	Starline_G20	Starline_G30
Features		Local data display and configuration	Data Acquisition, Analysis, and Management
Display function		●
Gateway function			Basic gateway functions	Standard gateway functions	Advanced gateway functions
Data analysis and management			●	●	●
Data transmission			●	●	●
Power supply		24V DC	12V DC	12V DC	12V DC
Communication interface	RS485 host interface	●	●	●	●
	RS485 slave interface	●	●	●	●
	Ethernet		●	●	●
	Wi-Fi			●	●
	4G				●
Network service	Starline Vision		●	●	●
	WEB-CONFIG	●	●	●	●
	Installation method	Panel mounting	DIN rail
	Dimensions	86*86 (mm)	3 modules	4 modules	5 modules

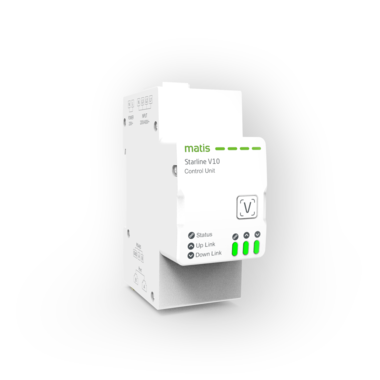

Starline_V Main Controller & Voltage Acquisition Module

Starline_V10 (Basic Version)

Starline_V20(Advanced Version)

Metering and monitoring

Uab、Ubc、Uc

●

Va、Vb、Vc

●

Frequency (f)

●

Imbalance

1P (1*230V)

●

Line voltage imbalance

●

Quality analysis

THDva、THDvb、THDvc

●

THDuab、THDubc、THDuca

●

Alarm function

Over-limit alarm(trigger an alarm when the set value exceeds the limit)

●

Phase voltage imbalance alarm

●

Line voltage imbalance alarm

●

Width/modules

27mm/1.5

Applicable voltage

1P (1*230V)

●

3P+N (3*400V)

●

3P (3*230V)

●

Advanced analysis functiona

●

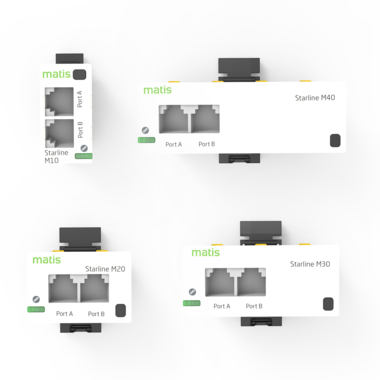

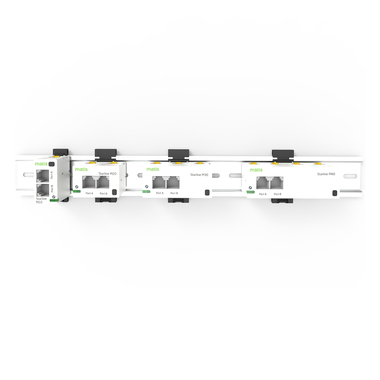

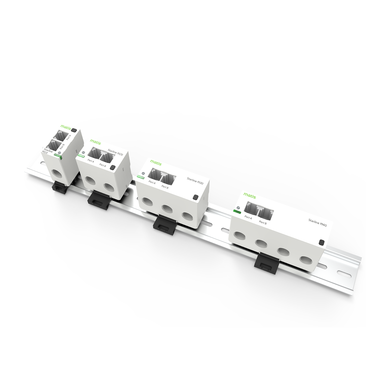

**Starline_M Low Current Meter**
		Starline_M10	Starline_M20	Starline_M30	Starline_M40
Basic parameters	Current inputs	1	1	3	3
	Basic current (Ib)	10A
	Max. current (Imax)	63A
	Supported load types	1P, 1P+N	1P+N, 2P, 2P+N	3P, 3P+N	3P+N
Energy metering		Support ±kWh, ±kvarh, kVAh metering
Multi-parameter measurement	Total current (I1, I2, I3)	Monitor the current data of each channel
	Total power (ΣP)	Monitor total active power
	Total reactive power (ΣQ)	Monitor total reactive power
	Total apparent power (ΣS)	Monitor total apparent power
	Power factor (ΣPF)	Monitor total power factor
	Per phase power	Support per phase power (P), reactive power (Q), apparent power (S) and power factor (PF)
Communication	Communication protocol	Modbus RTU protocol, support remote monitoring
	Connection	Starline Bus (RJ12) interface
	Power supply	Power supply via RJ12 port
Temperature		Monitor each phase temperature
Physical specifications	Width(mm)	18	36	54	72
Application scenarios	Distribution system	Single-phase current metering	Single-phase, two-phase and three-phase current metering	Three-phase current metering	Three-phase current metering
	Industrial equipment	Current monitoring of low power devices	Current monitoring of small and medium-sized equipment	Current monitoring of high power equipment	Current monitoring of large industrial equipment
	Power management system	Support low current metering and management

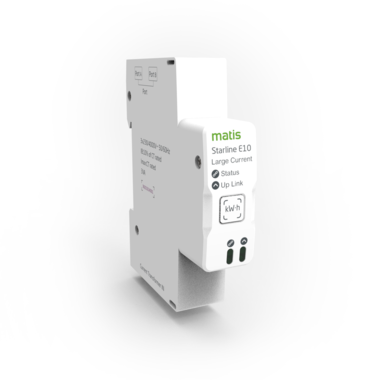

**Starline_E High Current Meter (3P, up to 6000A)**
		Starline_E10 (Basic Version)	Starline_E11 (Advanced Version)	Starline_E31 (Advanced Version)
Metering function	±kWh、±kvarh、kVAh	●	●	●
Multi-tariff metering		Up to 3 tariffs	Up to 5 tariffs	Up to 5 tariffs
Multi-parameter measurement	I1、I2、I3、In	●	●	●
Multi-parameter measurement	ΣQ、ΣS、ΣPF	●	●	●
Power factor and per phase power measurement (P、Q、S、PF)		●	●	●
Current imbalance		●	●	●
Energy quality analysis	THD、THDin		●	●
Energy quality analysis	THDi1、THDi2、THDi3		●	●
Current single harmonic analysis (up to 63rd)		●	●	●
Alarm	Overcurrent and overload		●	●
	Harmonic		●	●
	Current imbalance		●	●
Anti-interference ability		High	Super high
Accuracy class		Class 0.5		Class 0.2
Specification		Width 18mm

**Starline_CT: CTA (Current Transformer Adapter)**
	CTA-5A
Primary current (A)	5
Secondary current (mA)	2.5

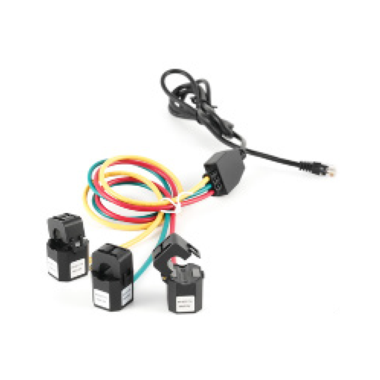

**Starline_CT: CTO (Open-Core Current Transformer)**
	CTO-200	CTO-400	CTO-600
Cable channel diameter (mm)	24	36	46
Rated current (A)	200	400	600
Recommended cable cross section (mm²)	70/95	185/240	300
Maximum current (A)	250	450	650
Secondary current (mA / A)	40mA
Rated load	10Ω
Accuracy class	Class 0.5

**Starline_CT: Rogowski (Flexible Current Transformer)**
	CTF-50	CTF-100	CTF-150	CTF-200	CTF-300	CTF-600
Open-core diameter (Ømm)	50	100	150	200	300	600
Current measurement range (a.c.)	100–400A	150–600A	400–2000A	600–4000A	1600–6000A
Frequency response	1Hz~50kHz
Measurement accuracy	±0.2%
Power supply	Self-powered
Output signal	85mV
Communication interface	RJ45
Installation method	Open-core, quick plug and unplug

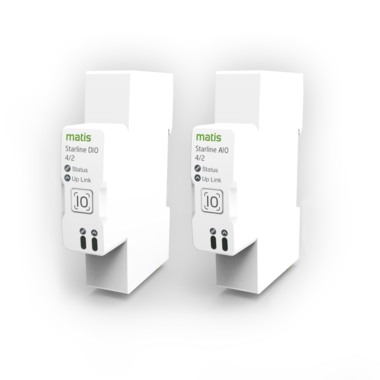

**Starline_IO I/O Module**
	DIO-4/2	AIO-2/2
Application scenarios	- Logical status monitoring - Alarm linkage - Signal counting	- Environmental parameter monitoring (such as pressure, humidity, temperature, etc.) - Industrial equipment control
Inputs	4 digital inputs	2 analog inputs
Input signal type	- Dry contact input (passive signal)	- Support 4-20mA current input - Programmable support for 0-10V voltage input
Input function	- Status monitoring: monitor the circuit breaker OF, SD or device status - Count and record the number of input pulses	Collect analog signals to achieve accurate environment and device monitoring
Outputs	2 transistor outputs	2 analog outputs
Output signal type	- Passive output - Support 48VDC/50mA or 24VAC/ 100mA output	- Support 4-20mA current output - Support 0-10V voltage output - Linear control signal output
Output function	- Remote logic control - Input events trigger alarm output	Alarm linkage: triggering in association with input events (such as over limit, status change)
Shell width	18mm
